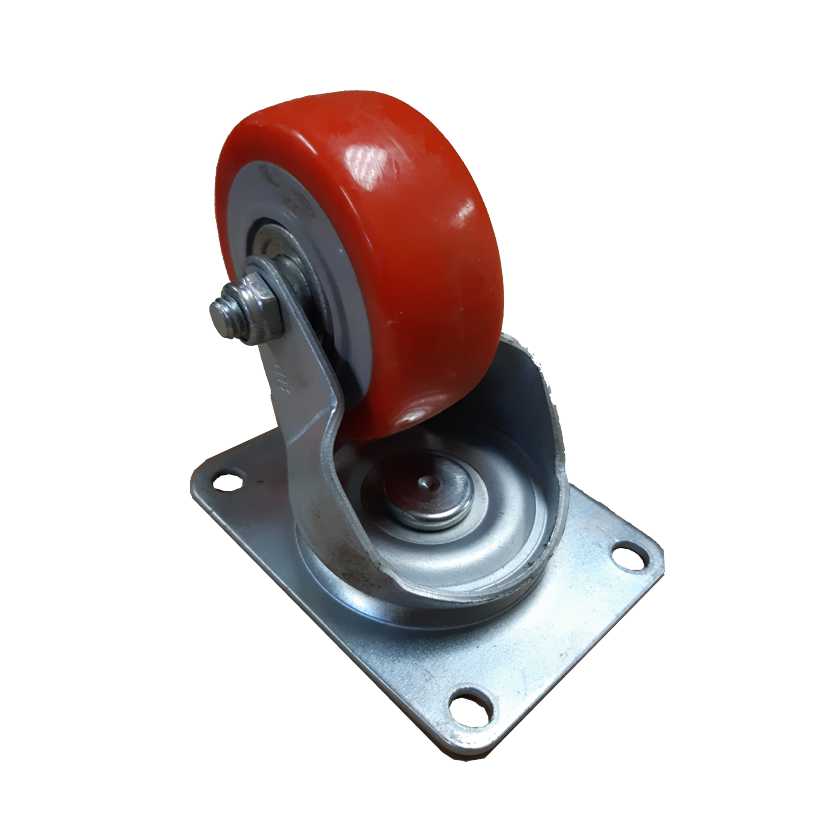

StarTech Urethane Red Caster

Features

  • Superior abrasion and tear resistance to rubber and are also non-marking and have higher load bearing capacities
  • 95A durometer (nominal) polyurethane tread bonded to a high-impact polyolefin core
  • Meets the stringent requirements of clinical environments such as the food industry, laboratories as well as the standard of hygiene required in the catering and cleaning professions.
  • Ideal for cart wash operations.
  • Highly resistant to weather and corrosive environment

  • Func. = Function
  • TW = Tread Width
  • SC = Standing Capacity Per Wheel
  • MC = Moving Capacity Per Wheel
  • WD = Wheel Diameter
  • OAH = Overall Height
  • TPD = Top Plate Dimension
  • MOD = Mounting Hole Dimension
  • HD = Hole Diameter
  • BT = Bearing Type

Part No Description Func. TW SC MC WD OAH TPD MOD HD BT
Part No Desc. Func. TWSCMCWDOAHTPDMODHDBT
HK3125UNBB StarTech Urethane Red Caster 3" Swivel 250LB Swivel1.25"250LB125LB3"3.81"3.13" X 4.13"2.38" x 3.38" 5/16"Ball Bearing
HKBR3125UNBB StarTech Urethane Red Caster 3" Swivel with Brake 250LB Swivel with Brake1.25"250LB125LB3"3.81"3.13" X 4.13"2.38" x 3.38" 5/16"Ball Bearing
HKR3125UNBB StarTech Urethane Red Caster 3" Rigid 250LB Rigid1.25"250LB125LB3"3.81"2.5" X 4.94"1.19" x 4" 5/16"Ball Bearing
