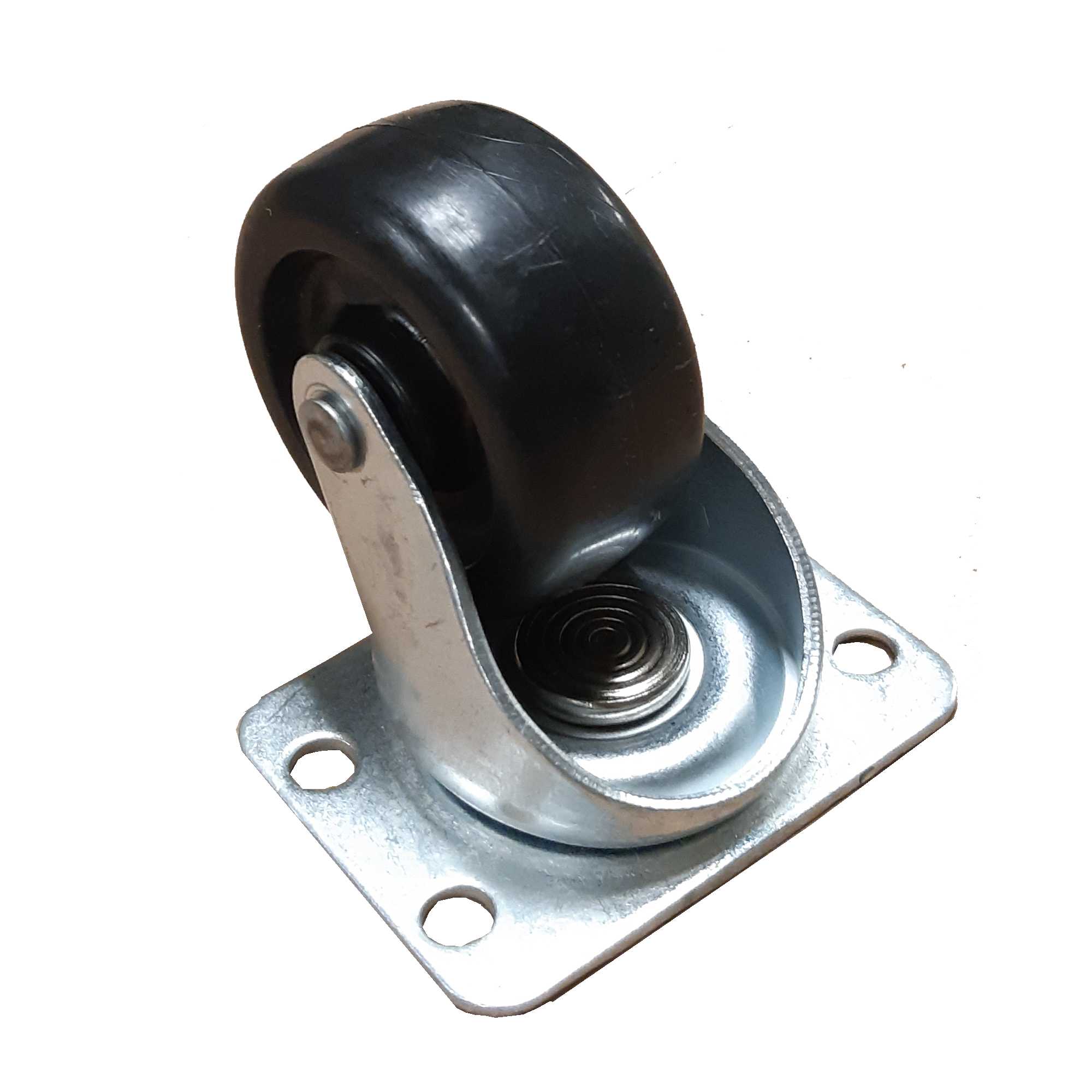

Nylon Caster


Features

  • General Purpose Wheel
  • Blended from Polyolefins
  • our NL Series “Ny-Lite” wheels are a hard, non-marking, stain resistant wheel. This material is impervious to water and highly resistant to abrasion, impacts, and chemicals.
  • With a temperature range from -28°C to 80°C (-20°F to 180°F), it is steam cleanable to meet a high standard of hygiene.
  • This wheel has a wide range of applications in the food industry, meat processing plants and an excellent general purpose wheel.

  • Func. = Function
  • TW = Tread Width
  • SC = Standing Capacity Per Wheel
  • MC = Moving Capacity Per Wheel
  • WD = Wheel Diameter
  • OAH = Overall Height
  • TPD = Top Plate Dimension
  • MOD = Mounting Hole Dimension
  • HD = Hole Diameter
  • BT = Bearing Type
  • * Polypropylene Material and not Polyolefins

Part No Description Func. TW SC MC WD OAH TPD MOD HD BT
Part No Desc. Func.TWSCMCWDOAHTPDMODHDBT
HK2NL Ny-Lite (NL) Caster 2" Swivel 100LB* Swivel15/16"150LB75LB2"2.5"1.88" x 2.56" 0.94" x 2.13" 1/4"Unknown
HKBR2NL Ny-Lite (NL) Caster 2" Swivel with Brake 100LB* Swivel with Side Brake15/16"150LB75LB2"2.5"1.88" x 2.56" 0.94" x 2.13" 1/4"Unknown
HKR2NL Ny-Lite (NL) Caster 2" Rigid 100LB* Rigid15/16"150LB75LB2"2.5"1.5" x 2.66" 0.94" x 2.13" 1/4"Unknown
HK25NL Ny-Lite (NL) Caster 2-1/2" Swivel 225LB Swivel1-1/8"225LB112LB2.5"3.25"2.75" x 3.94" 1.75" x 3" 5/16"Roller
HKBR25NL Ny-Lite (NL) Caster 2-1/2" Swivel with Brake 225LB Swivel with Brake1-1/8"225LB112LB2.5"3.25"2.75" x 3.94" 1.75" x 3" 5/16"Roller
HKR25NL Ny-Lite (NL) Caster 2-1/2" Rigid 225LB Rigid1-1/8"225LB112LB2.5"3.25"2.25" x 4.5" 1.06" x 3.375" 5/16"Roller
LX3125NL Ny-Lite (NL) Caster 3" Swivel 250LB Swivel1-1/4"250LB125LB3"4"2.63" x 3.75" 1.75" x 3" 5/16"Plain
LXTLB3125NL Ny-Lite (NL) Caster 3" Swivel with Brake 250LB Swivel with Brake1-1/4"250LB125LB3"4"2.63" x 3.75" 1.75" x 3" 5/16"Plain
LXR3125NL Ny-Lite (NL) Caster 3" Rigid 250LB Rigid1-1/4"250LB125LB3"4"2.63" x 3.75" 1.75" x 3" 5/16"Plain
LX4125NL Ny-Lite (NL) Caster 4" Swivel 250LB Swivel1-1/4"250LB125LB4"5"2.63" x 3.75" 1.75" x 3" 5/16"Plain
LXTLB4125NL Ny-Lite (NL) Caster 4" Swivel with Brake 250LB Swivel with Brake1-1/4"250LB125LB4"5"2.63" x 3.75" 1.75" x 3" 5/16"Plain
LXR4125NL Ny-Lite (NL) Caster 4" Rigid 250LB Rigid1-1/4"250LB125LB4"5"2.63" x 3.75" 1.75" x 3" 5/16"Plain
HK4150NLRB Ny-Lite (NL) Caster 4" Swivel 400LB Swivel1-1/2"400LB200LB4"5"4" x 5"3" x 4" 3/8"Roller
HKTLB4150NLRB Ny-Lite (NL) Caster 4" Swivel with Brake 400LB Swivel with Brake1-1/2"400LB200LB4"5"4" x 5"3" x 4" 3/8"Roller
HKR4150NLRB Ny-Lite (NL) Caster 4" Rigid 400LB Rigid1-1/2"400LB200LB4"5"3.13" X 6.25"1.75" x 5" 3/8"Roller
LX5125NL Ny-Lite (NL) Caster 5" Swivel 250LB Swivel1-1/4"250LB125LB5"6"2.63" X 3.75"1.75" x 3" 5/16"Plain
LXTLB5125NL Ny-Lite (NL) Caster 5" Swivel with Brake 250LB Swivel with Brake1-1/4"250LB125LB5"6"2.63" X 3.75"1.75" x 3" 5/16"Plain
LXR5125NL Ny-Lite (NL) Caster 5" Rigid 250LB Rigid1-1/4"250LB125LB5"6"2.63" X 3.75"1.75" x 3" 5/16"Plain
