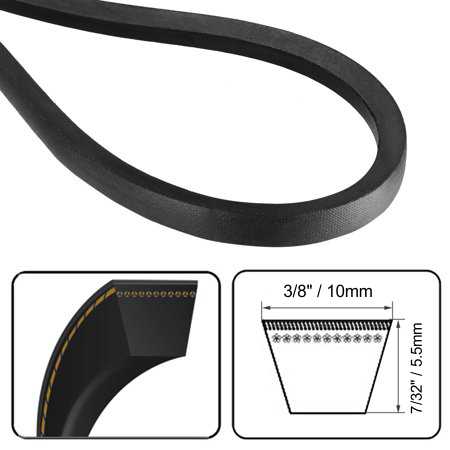

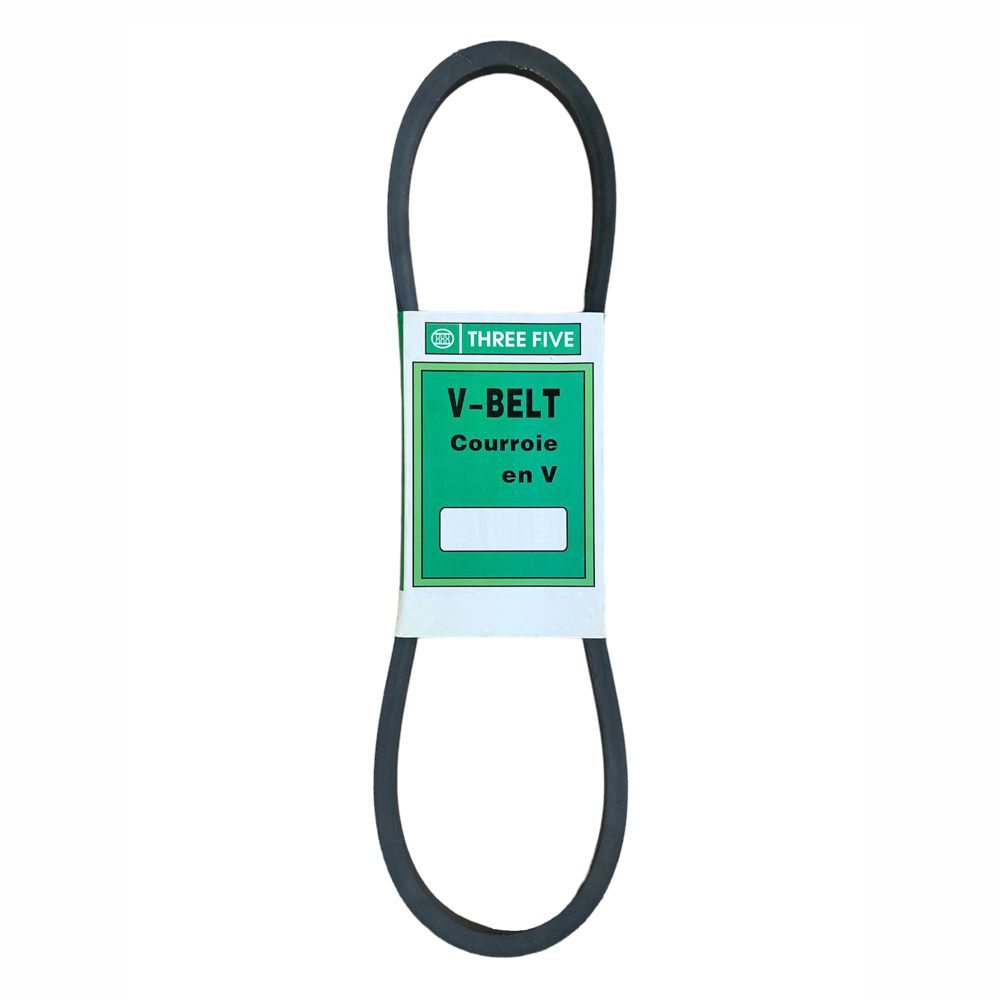

3L V-Belt (M-Belt)
Features
- FHP = Fractional Horsepower Belt
- Providing the highest mean power transmission for every conceivable type of small machine.
- manufactured with a durable layer of continuous polyester cable cord, which forms the load-carrying section and is precisely positioned to prevent the belt from flexing and distorting.
- Meets RMA standards for Oil and Heat Resistance and Static Conductivity
- Common Applications
- Household washers
- Dishwashers
- Fans and blowers
- Centrifugal pumps
- Other light duty drives - Made in Thailand
- All dimensions are nominal

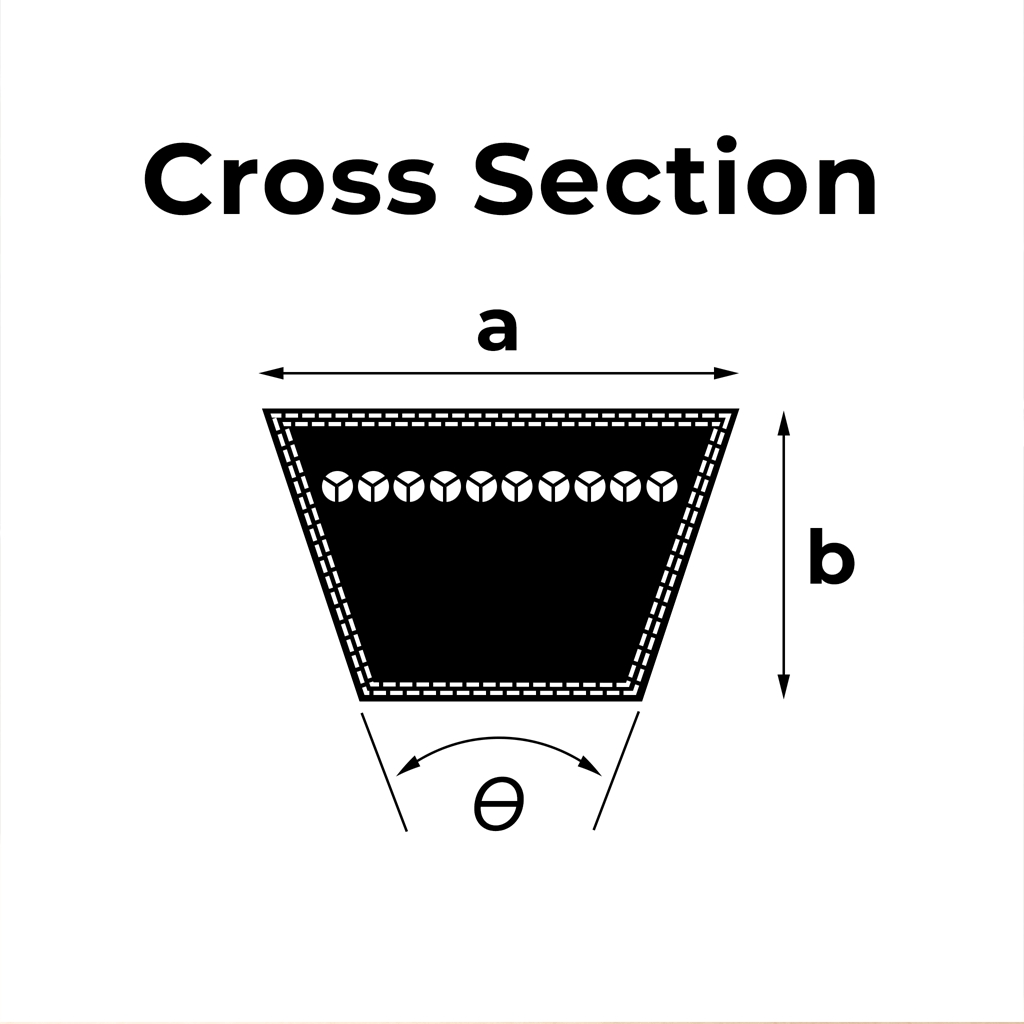

| Part No | Description | Outside Length | Width (a) | Height (b) | Angle (∅) | Approx. Weight | Stocked |
|---|---|---|---|---|---|---|---|
| Part No | Desc. | Outside Length | Width (a) | Height (b) | Angle (∅) | Approx. Weight | Stocked |
| 3L-140 | THREE-FIVE FHP V-BELT | 14" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.05 lbs (23g) | Yes |
| 3L-150 | THREE-FIVE FHP V-BELT | 15" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.05 lbs (24g) | Yes |
| 3L-160 | THREE-FIVE FHP V-BELT | 16" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.06 lbs (26g) | Yes |
| 3L-170 | THREE-FIVE FHP V-BELT | 17" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.06 lbs (27g) | Yes |
| 3L-180 | THREE-FIVE FHP V-BELT | 18" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.06 lbs (29g) | Yes |
| 3L-190 | THREE-FIVE FHP V-BELT | 19" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.07 lbs (31g) | Yes |
| 3L-200 | THREE-FIVE FHP V-BELT | 20" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.07 lbs (32g) | Yes |
| 3L-210 | THREE-FIVE FHP V-BELT | 21" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.07 lbs (34g) | Yes |
| 3L-220 | THREE-FIVE FHP V-BELT | 22" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.08 lbs (36g) | Yes |
| 3L-230 | THREE-FIVE FHP V-BELT | 23" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.08 lbs (37g) | Yes |
| 3L-240 | THREE-FIVE FHP V-BELT | 24" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.09 lbs (39g) | Yes |
| 3L-250 | THREE-FIVE FHP V-BELT | 25" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.09 lbs (40g) | Yes |
| 3L-260 | THREE-FIVE FHP V-BELT | 26" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.09 lbs (42g) | Yes |
| 3L-270 | THREE-FIVE FHP V-BELT | 27" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.1 lbs (44g) | Yes |
| 3L-280 | THREE-FIVE FHP V-BELT | 28" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.1 lbs (45g) | Yes |
| 3L-290 | THREE-FIVE FHP V-BELT | 29" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.1 lbs (47g) | Yes |
| 3L-300 | THREE-FIVE FHP V-BELT | 30" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.11 lbs (48g) | Yes |
| 3L-310 | THREE-FIVE FHP V-BELT | 31" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.11 lbs (50g) | Yes |
| 3L-320 | THREE-FIVE FHP V-BELT | 32" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.11 lbs (52g) | Yes |
| 3L-330 | THREE-FIVE FHP V-BELT | 33" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.12 lbs (53g) | Yes |
| 3L-340 | THREE-FIVE FHP V-BELT | 34" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.12 lbs (55g) | Yes |
| 3L-350 | THREE-FIVE FHP V-BELT | 35" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.12 lbs (57g) | Yes |
| 3L-360 | THREE-FIVE FHP V-BELT | 36" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.13 lbs (58g) | Yes |
| 3L-370 | THREE-FIVE FHP V-BELT | 37" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.13 lbs (60g) | Yes |
| 3L-380 | THREE-FIVE FHP V-BELT | 38" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.14 lbs (61g) | Yes |
| 3L-390 | THREE-FIVE FHP V-BELT | 39" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.14 lbs (63g) | Yes |
| 3L-400 | THREE-FIVE FHP V-BELT | 40" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.14 lbs (65g) | Yes |
| 3L-410 | THREE-FIVE FHP V-BELT | 41" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.15 lbs (66g) | Yes |
| 3L-420 | THREE-FIVE FHP V-BELT | 42" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.15 lbs (68g) | Yes |
| 3L-430 | THREE-FIVE FHP V-BELT | 43" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.15 lbs (70g) | Yes |
| 3L-440 | THREE-FIVE FHP V-BELT | 44" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.16 lbs (71g) | Yes |
| 3L-450 | THREE-FIVE FHP V-BELT | 45" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.16 lbs (73g) | Yes |
| 3L-460 | THREE-FIVE FHP V-BELT | 46" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.16 lbs (74g) | Yes |
| 3L-470 | THREE-FIVE FHP V-BELT | 47" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.17 lbs (76g) | Yes |
| 3L-480 | THREE-FIVE FHP V-BELT | 48" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.17 lbs (78g) | Yes |
| 3L-490 | THREE-FIVE FHP V-BELT | 49" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.17 lbs (79g) | Yes |
| 3L-500 | THREE-FIVE FHP V-BELT | 50" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.18 lbs (81g) | Yes |
| 3L-510 | THREE-FIVE FHP V-BELT | 51" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.18 lbs (82g) | Yes |
| 3L-520 | THREE-FIVE FHP V-BELT | 52" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.19 lbs (84g) | Yes |
| 3L-530 | THREE-FIVE FHP V-BELT | 53" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.19 lbs (86g) | Yes |
| 3L-540 | THREE-FIVE FHP V-BELT | 54" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.19 lbs (87g) | Yes |
| 3L-550 | THREE-FIVE FHP V-BELT | 55" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.2 lbs (89g) | Yes |
| 3L-560 | THREE-FIVE FHP V-BELT | 56" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.2 lbs (91g) | Yes |
| 3L-570 | THREE-FIVE FHP V-BELT | 57" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.2 lbs (92g) | Yes |
| 3L-580 | THREE-FIVE FHP V-BELT | 58" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.21 lbs (94g) | Yes |
| 3L-590 | THREE-FIVE FHP V-BELT | 59" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.21 lbs (95g) | Yes |
| 3L-600 | THREE-FIVE FHP V-BELT | 60" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.21 lbs (97g) | Yes |
| 3L-610 | THREE-FIVE FHP V-BELT | 61" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.22 lbs (99g) | Yes |
| 3L-620 | THREE-FIVE FHP V-BELT | 62" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.22 lbs (100g) | Yes |
| 3L-630 | THREE-FIVE FHP V-BELT | 63" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.22 lbs (102g) | Yes |
| 3L-640 | THREE-FIVE FHP V-BELT | 64" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.23 lbs (103g) | Yes |
| 3L-650 | THREE-FIVE FHP V-BELT | 65" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.23 lbs (105g) | Yes |
| 3L-660 | THREE-FIVE FHP V-BELT | 66" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.24 lbs (107g) | Yes |
| 3L-670 | THREE-FIVE FHP V-BELT | 67" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.24 lbs (108g) | Yes |
| 3L-680 | THREE-FIVE FHP V-BELT | 68" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.24 lbs (110g) | Yes |
| 3L-690 | THREE-FIVE FHP V-BELT | 69" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.25 lbs (112g) | Yes |
| 3L-700 | THREE-FIVE FHP V-BELT | 70" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.25 lbs (113g) | Yes |
| 3L-710 | THREE-FIVE FHP V-BELT | 71" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.25 lbs (115g) | Yes |
| 3L-720 | THREE-FIVE FHP V-BELT | 72" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.26 lbs (116g) | Yes |
| 3L-730 | THREE-FIVE FHP V-BELT | 73" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.26 lbs (118g) | Yes |
| 3L-740 | THREE-FIVE FHP V-BELT | 74" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.26 lbs (120g) | Yes |
| 3L-790 | THREE-FIVE FHP V-BELT | 79" | 3/8" (10mm) | 7/32" (5.5mm) | 40° | 0.28 lbs (128g) | Quote |
