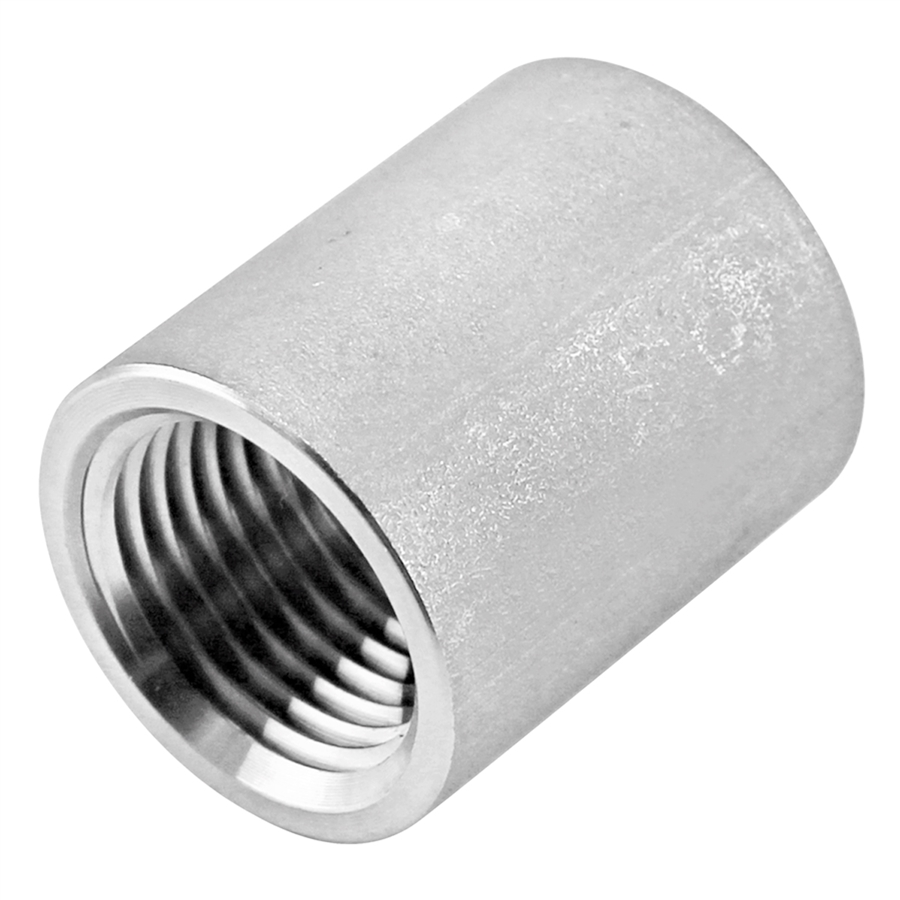

Stainless Steel 304 Full Merchant (Weldable) Coupling
Features
- Material: Stainless Steel 304 (ASTM A351)
- Dimension standard: ISO 4144
- Thread specification: ANSI/ASME B1.20.1 (NPT)
- Temperature range: -20°C to 220°C (-4°F to 428°F)
- Non-shock working pressure: 239 PSI (16.5 bar) at 100°C (212°F)
- NSF/ANSI 372 Certified (Lead Free)
- Suitable for low-pressure piping in water, oil, gas, and steam systems
- Used in plumbing, food processing, chemical, and industrial installations
- Excellent corrosion resistance for indoor and outdoor use
- CRN (Canadian Registration Number) listed versions available upon request
| Part No | Description |
|---|---|
| SSFC-01 | Stainless Steel 304 Schedule 40 Merchant (Weld) Full Coupling 1/8" |
| SSFC-02 | Stainless Steel 304 Schedule 40 Merchant (Weld) Full Coupling 1/4" |
| SSFC-03 | Stainless Steel 304 Schedule 40 Merchant (Weld) Full Coupling 3/8" |
| SSFC-05 | Stainless Steel 304 Schedule 40 Merchant (Weld) Full Coupling 1/2" |
| SSFC-07 | Stainless Steel 304 Schedule 40 Merchant (Weld) Full Coupling 3/4" |
| SSFC-10 | Stainless Steel 304 Schedule 40 Merchant (Weld) Full Coupling 1" |
| SSFC-12 | Stainless Steel 304 Schedule 40 Merchant (Weld) Full Coupling 1-1/4" |
| SSFC-15 | Stainless Steel 304 Schedule 40 Merchant (Weld) Full Coupling 1-1/2" |
| SSFC-20 | Stainless Steel 304 Schedule 40 Merchant (Weld) Full Coupling 2" |
